Why Some Landing Gears are Tilted

Have you ever wondered why a lot of big jets have a landing gear that is tilted? Every aircraft landing gear that has a truck (or a bogie beam, as the Europeans call it) supporting two or more axles, right from the Boeing 707 of the 1960s which has a tilt mechanism on each main landing gear.


The purpose of the tilt mechanism is to allow proper truck alignment for retraction into the wheelwell. The wheelwell has limited space, so the truck is “tilted” in such a way that it can fit in smoothly. You will not see this on Infinite flight as they do not have this affect yet.

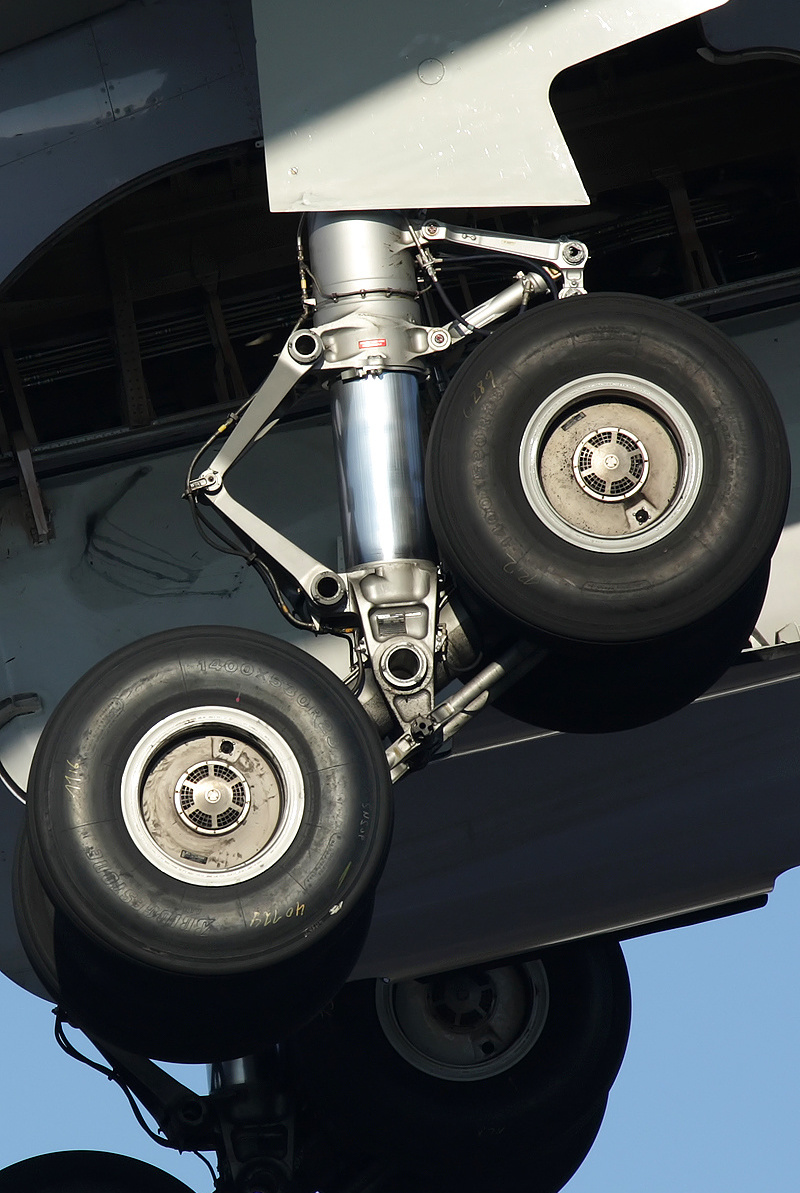

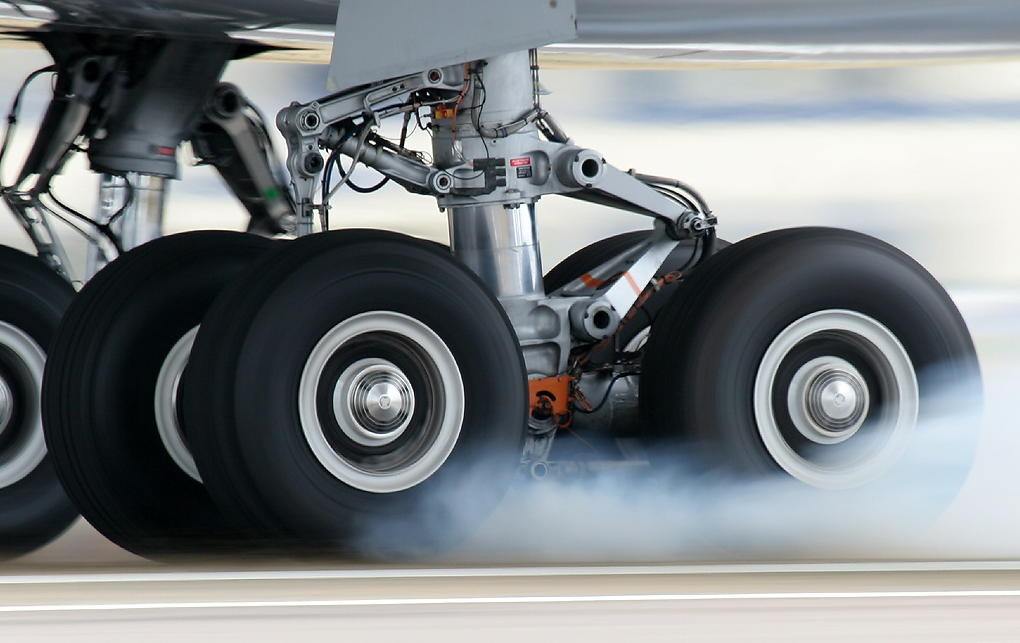

Here is an a photo of a real airplane with a tilted landing gear.


Tilting is achieved by a hydraulically-operated truck tilt actuator or cylinder. The mechanism is designed so the truck is allowed to become parallel to the fuselage upon landing;


In fact, proper tilting is so important that every aircraft equipped with such trucks has sensor systems and interlocks to prevent gear retraction if any of the trucks (the 747 has four of them) is not properly tilted. The interlock will simply prohibit the gear lever handle from being raised to UP. (There are overrides available in some aircraft to cater to some very abnormal situations.)

Hope this helped!
