Rotation on Boeing 7 series aircraft(Tail clearance)

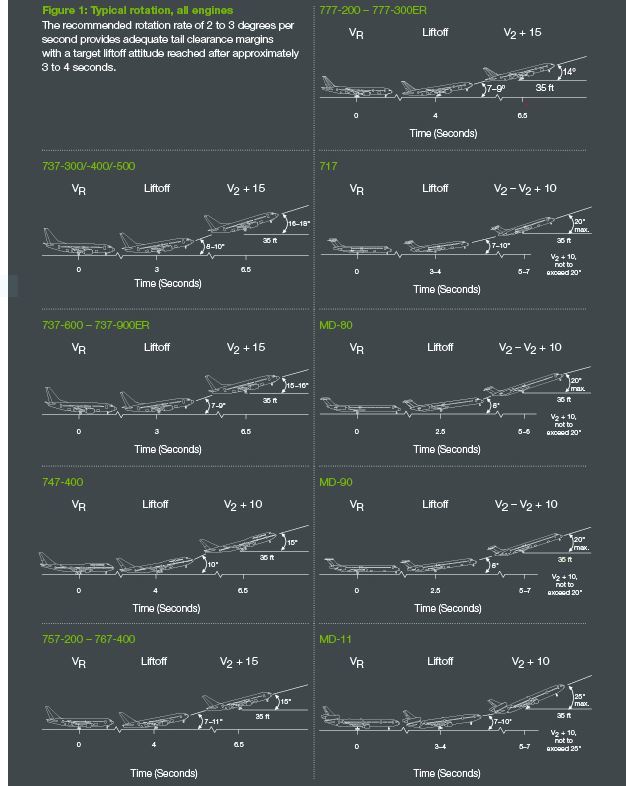

Found this Boeing Aero magazine(QTR_02 09) from 2009 sitting around in my room. Here is the full online copy of this article http://www.boeing.com/commercial/aeromagazine/articles/qtr_02_09/article_04_1.html

QTR_02 09

9 Likes

Very cool find

2 Likes

Bookmarked and liked. Great finding.

2 Likes

I had once seen this graphic before, but couldn’t manage to find it again.
Thanks!

1 Like

I didn’t know a md-11 can pitch up to 25 degrees. Maybe it’s because of it’s three engines.
