Proper DUBAI arrival proceedure(From all directions)

Prashant_Divedi · February 6, 2019, 6:18pm

Hey guys, I am just adding some proceedures to arrive OMDB since its airport of the week so it could be easier to arrange traffic if you will follow these arrival STAR proceedures. I am sorry if its any /kind of duplicate or if its not appropriate to put here,in order to follow these just add below mentioned STAR waypoints in your FPL,

Arrivals from east

RWY 12L/12R- DATOB DB400 DB401 DB402 DB403 SOLIL ODLAL DB414 DB413 REREK

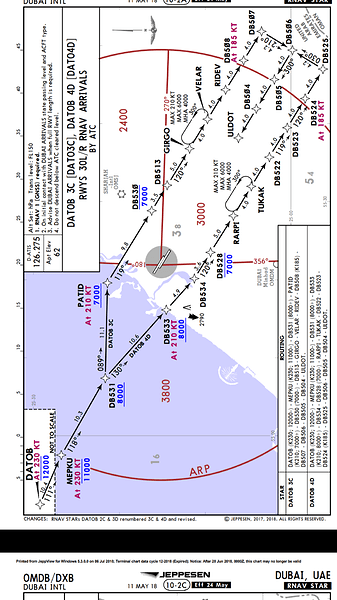

RWY- 30L/30R- DATOB MEPKU DB531 DB533 DB534 DB528 RARPI TUKAK DB522 DB523 DB524 DB525 DB506 DB505 DB504 ULDOT (NO IAP included)

Arrivals from west

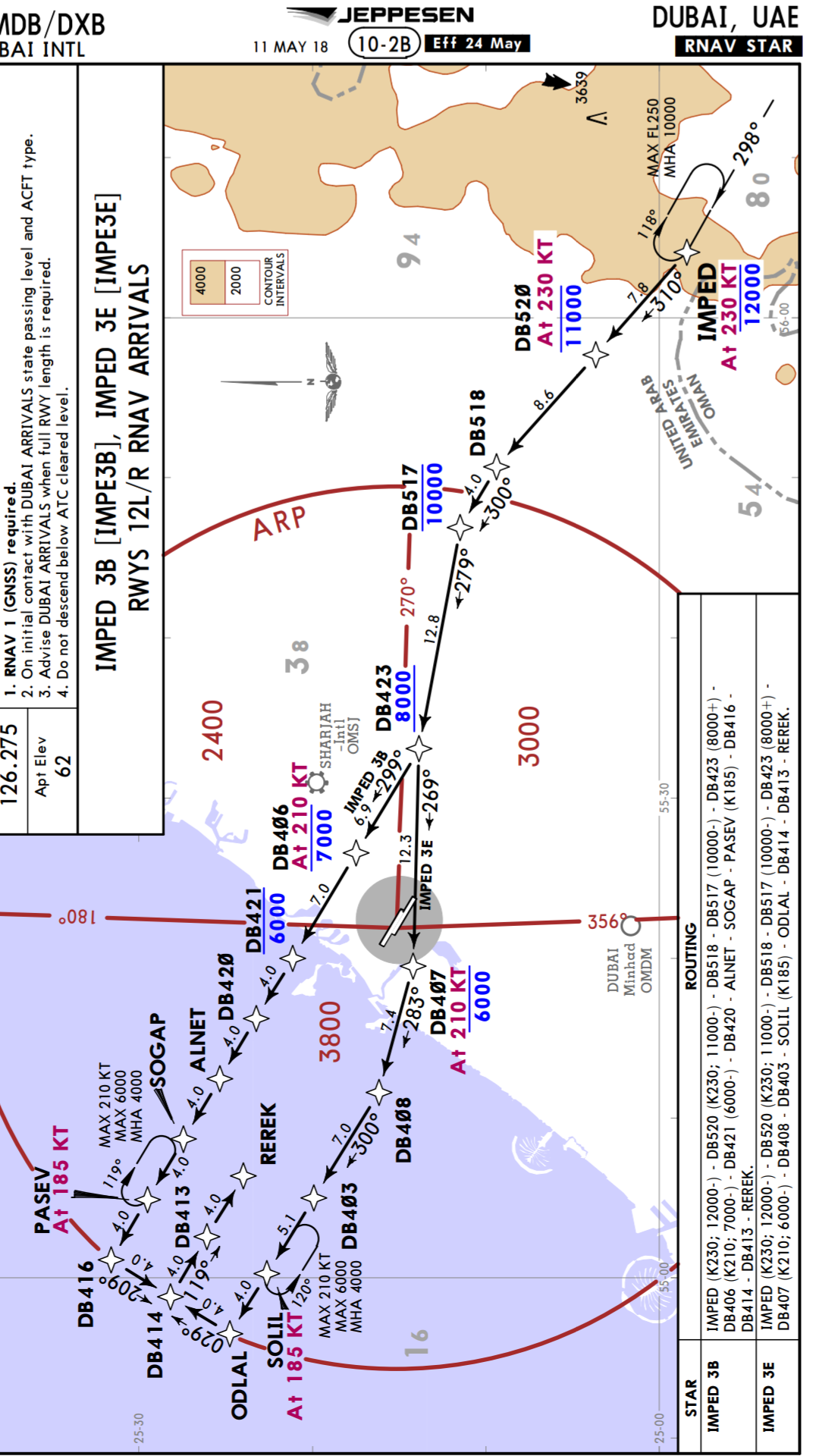

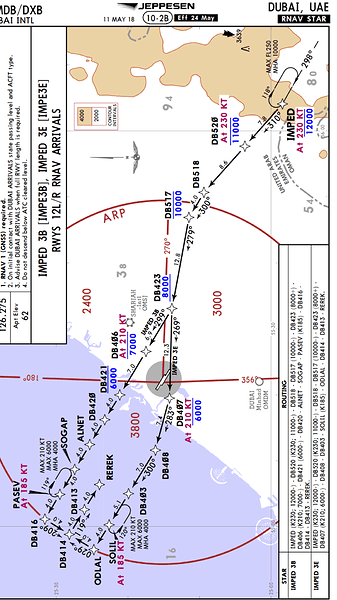

RWY 12L/12R- IMPED DB520 DB518 DB517 DB423 DB407 DB408 DB403 SOLIL ODLAL DB414 DB413 REREK (NO IAP INCLUDED)

RWY 30L/30R- IMPED DB520 DB518 DB517 VUTON DB515 DB514 DB513 GIRGO VELAR RIDEV DB508 DB507 DB506 DB505 DB504 ULDOT (NO IAP,INCLUDED ADD IAP ACCORDING TO RUNWAY)
Screenshot_20190206-214654

Arrivals from North

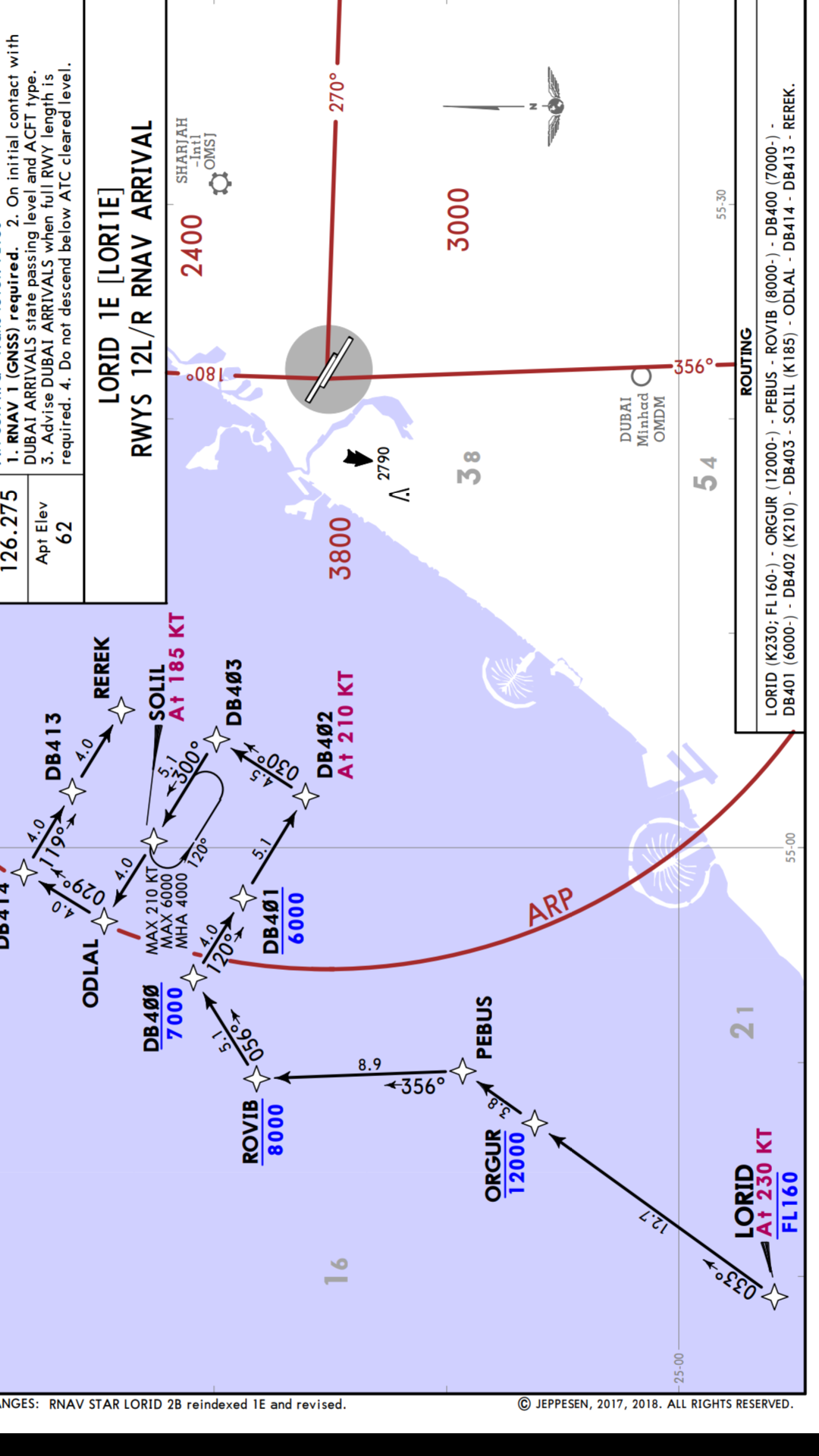

RWY 12L/12R- LORID ORGUR PEBUS ROVIB DB400 DB401 DB402 DB403 SOLIL ODLAL DB414 DB413 REREK (NO IAP, INCLUDED ADD IAP WP A/C TO YOUR RUNWAY)
Screenshot_20190206-214918

RWY 30L/30R- LORID ORGUR PEBUS EMOPO DB531 DB533 DB534 DB528 RARPI TUKAK DB522 DB523 DB524 DB525 DB506 DB505 DB504 ULDOT (NO IAP INCLUDED)
Screenshot_20190206-215014

Arrivals from south

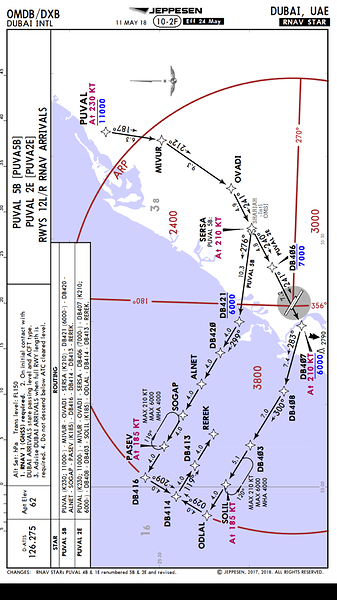

RWY 12L/12R- PUVAL MIVUR OVADI SERSA SB421 DB420 ALNET SOGAP PASEV DB416 DB414 DB413 REREK

Screenshot_20190206-215113

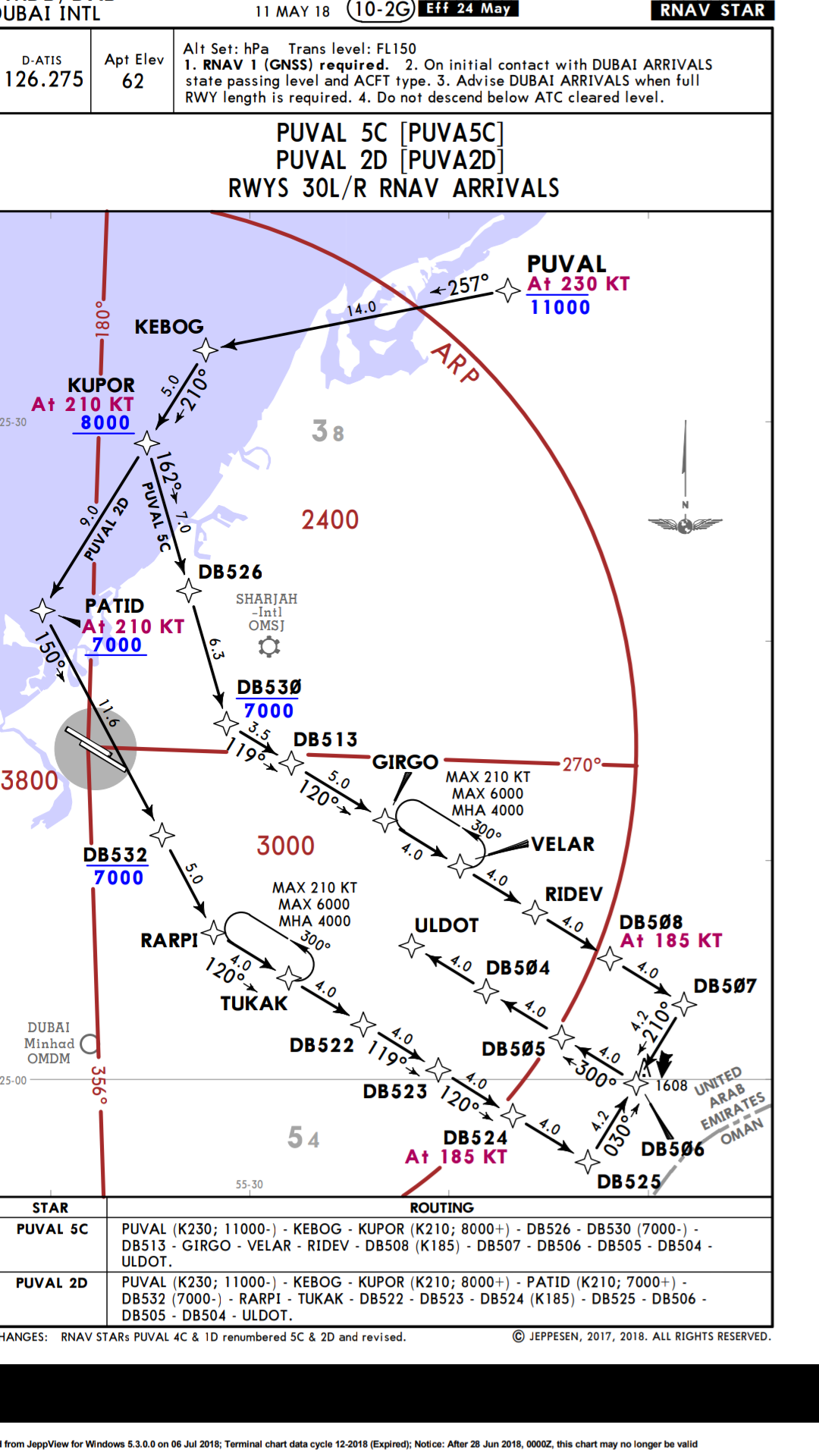

RWY 30L/30R- PUVAL KEBOG KUPOR DB526 DB530 DB513 GIRGO VELAR RIDEV DB508 DB507 DB506 DB505 DB504 ULDOT
Screenshot_20190206-215150

Hope this helps pilots to arrive safely.All the above arrivals are RNAV STAR followed by real life aircrafts.
If you find any errors,lemme know and i will correct :). Please include IAPs accordingly to the runway in use :)

Happy landings

Nate_Schneller · February 6, 2019, 3:49pm

Mind uploading pictures of the corresponding charts to those STARs? Thanks!

Prashant_Divedi · February 6, 2019, 4:13pm

Will do within an hour :)

Prashant_Divedi · February 6, 2019, 4:22pm

Done 👍 Have a look again :)

FBWFTW · February 6, 2019, 4:35pm

Great thread! The more we get pilots using the RW procedures, the easier it will be on ATC (everyone funneling thru the same path) and the easier it will become for pilots to nail their approach and grease their landings-not to mention it looks professional!

Airbus_737 · February 6, 2019, 5:24pm

Great thread! If you’re wondering why aircraft fly the long downwind or zig-zag approaches, they allow for more space for more aircraft (OMDB is a very busy airport). IFATC uses similar strategies when controlling at busy airports.

Nate_Schneller · February 6, 2019, 5:39pm

Awesome! Thanks!

Prashant_Divedi · February 6, 2019, 5:39pm

Glad you guys liked it🙂

Prashant_Divedi · February 6, 2019, 5:46pm

Correct, RNAV arrival which goes over the OMDB airspace like IMPED etc… needs transitions from tower ,if pilots will request inbound then they’ll have to most likely unfollow the RNAV. After requesting transition they can remain on permitted altitude and then can request inbound when reaching last waypoint.So possibly they could get Straight in entry frm tower and will never deviate from SID

Prasoon_S · February 6, 2019, 5:50pm

Perfect work there @Prashant_Divedi 👌 Helpful for pilots as well as for ATCs

Prashant_Divedi · February 6, 2019, 5:52pm

Thanks @Prasoon_S :)

NationofAviation · February 19, 2019, 11:23pm

Doesn’t SimBrief automatically implement all the starts upon arrival?

Grady_Herbert · February 20, 2019, 2:05am

Sometimes it does depending on the airport (like EPWA), but it is always good to have the STARs.

Prashant_Divedi · February 20, 2019, 8:15am

If you’ll check them with a closer look then most waypoints doesn’t match the rl way points so no.
