How to read wind barbs in Infinite Flight

Ground School Community Tutorials
1

Screenshot_20241221_172642
Screenshot_20241221_1726421665×1484 228 KB

What are wind barbs 💨

Wind barbs are graphical symbols used on weather maps to indicate wind speed and direction at specific locations. They are widely used in meteorology, aviation, and other fields where understanding wind conditions.

How to read a wind barb 💨

1. Wind direction:

  • The stem (long line) of the wind barb points in the direction the wind is coming from.
  • For example, if the stem points north, the wind is blowing from the north to the south.

2. Wind Speed:

  • Each barb or flag has a specific value:
  • Short barb: 5 knots
  • Long barb: 10 knots
  • Triangle: 50 knots
  • The total wind speed is the sum of these values.
  • Calm winds are represented by a circle

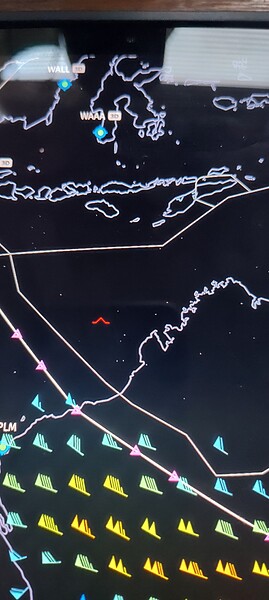

Note: Wind barbs in Infinite Flight are colour coded.

Example

Screenshot 2024-12-21 173405
Screenshot 2024-12-21 1734051600×580 93.8 KB

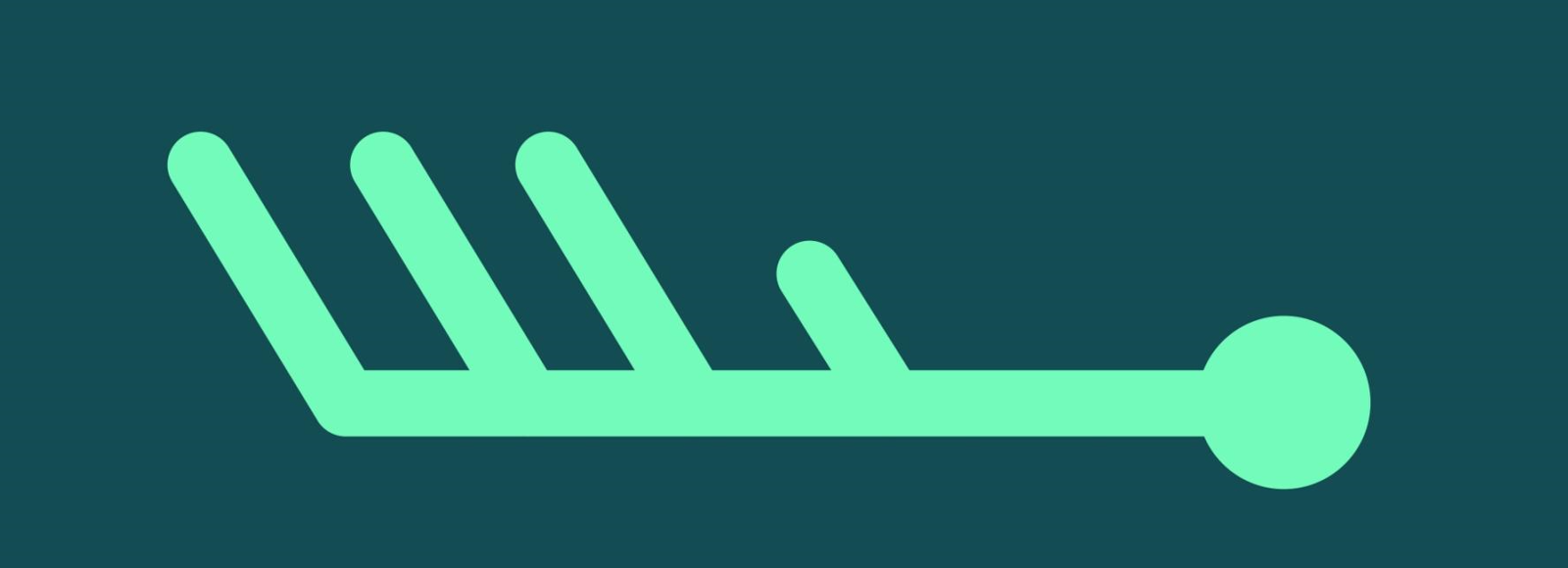

Let us read this wind barb:

  • One short barb: 5 kts
  • 3 long barbs: 30 kts

So 30+5 kts= 35 kts

Official Infinite Flight tutorial:

I recommend you watch out the Official Infinite Flight tutorial how to read wind barbs!

Thanks for checking out my guide , hope it is useful!
