How do you read the new HUD?

[m_de41]

I have been enjoying the new Infinite Flight update with the new aircraft and UI. However, I am having trouble getting used to the new heads up display. I have a few questions about the new HUD.

1. How do you set the ILS/GPS for a runway? I used to be able to touch and hold on the ILS/GPS button in the bottom right half of the display, however, I can no longer do that. How can I select the ILS/GPS of the runway I would like to land at?

2. Where is the glideslope? The glideslope is usually positioned right next to the altitude indicator, but I can’t find it anymore.

3. What does the localizer look like now? Is it the pink bar in the center of the “heading wheel”?

[Jack_BC]

Good evening,

Avionics Control Panel Explained

[image] [image] Overview Letter Instrument Explained A NAV 1 Displays the VOR Identifier and VOR frequency for tuned in for Nav 1 B NAV 2 Displays the VOR Identifier and VOR frequency for tuned in for Nav 2 C ADF 1 Displays the ADF Identifier and ADF Frequency D CRS 1 Allows you to change the course needle for the navigation frequency dialed in on NAV 1 E CRS 2 Allows you to change the course needle for the navigation frequency dialed in on NAV 2 F SOURCE Change between GPS, …

Please fly direct to this topic, and read it over. If you have any questions about any aspect of the tutorial, please, comment below the topic.

Have a very merry Xmas,
Jack

Edit, for further advice.

Important note regarding ILS tuning:

You must be within a 27nm radius of the airport in order to successfully tune in the ILS frequency. Outside of this range you will not be able to tune in the runway. I would highly suggest creating a FPL that has a GPS route from the end of the cone to the runway threshold and use that as a guide to align you with the runway. This will not be as accurate as the ILS but will keep you going in the correct direction.

[azeeuwnl]

While Deercrusher wrote a beaut tutorial, I do agree some visuals on the new look and feel of doing an ILS approach would help.

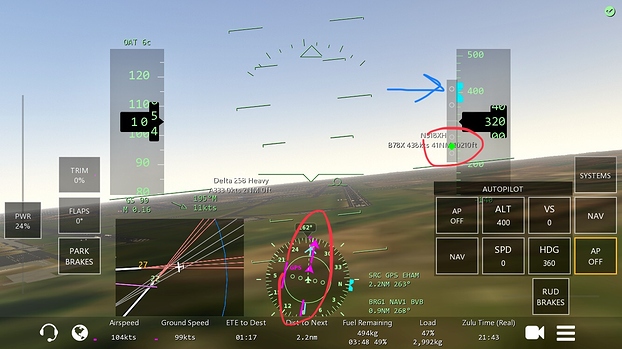

Here is what I have worked out:

• the blue arrow shows your set altitude. Here 400 feet
• below, the blue arrow shows the extended centerline
• below, the purple arrow shows your flightplan (I think)
• the green dot is your glide slope

Key message from the tutorial: a GPS approach will not provide us with glideslope; its basically a VFR approach now. Only runways with an ILS cone will allow us to do ILS approach
