Basic Aerodynamics

Aerodynamics can be a large area to cover. We are going to easily break it down to simple terms that apply to Infinite Flight.


Forces acting on a Aircraft

  • Gravity The force pulling us to earth
  • Lift Generated by the wings to defy gravity
  • Thrust Generated by the propeller, or turbo fan propelling the aircraft forward
  • Drag The resistance of the air the aircraft is moving thru

In straight and level unaccelerated flight all four of these forces are in complete balance with one another.


Air density

First let’s talk about air density. There are 2 things that effect this.

  1. Air temperature As air heats up its molecules become excited, and begin moving around. Causing them to break apart from each other. The result is air that doesn’t have as much mass, or density as colder air.

  2. Altitude _The same principle applies as with temperature. Except the force creating the lack of molecules is height in the atmosphere instead of heat. As we climb the air becomes thinner, and thinner with less mass to take up the space in the atmosphere.

This is why as we climb our airspeed drastically decreases, and why it takes us longer to take off in the summer. This is also where we get turbulence when we pass thru unstable air.


Lift & AoA

How lift is generated
As the air hits the leading edge its separated to the upper and lower parts of the wing. The upper part of the wing is cambered which causes the air to travel further on the top then the bottom. This causes the air to speed up thus creating a low pressure above the wing. In turn creating lift, and eventually over coming gravity with speed.

Angle of attack AoA

Angle of attack is the relation of the wing cord line to the relative wind direction. Not to be confused with pitch attitude


As we approach a stall and the AoA is increased our lift is greatly reduced

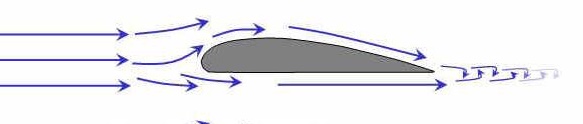

Notice the unstable air toward the trailing edge

Then leading to a stall where sufficient lift is no longer created.


That concludes this brief tutorial on aircraft aerodynamics. Hopefully you gained a bit more understanding of the aerodynamics behind flight, and why certain things happen. As always if you have any questions ask in the comments below. ✌️
