Airspace boundings and colors

Black_Bird · July 21, 2020, 5:14pm

Hi, I still want to enhance my pilot skills and fly close to real life procedures. Therefore I think it’s necessary to know everything about Airpspaces: colors and their different tiers/boarders/forms. Problem: I know less about it and I only found an, in some parts, outdated post regarding this topic.

Do I have to fly in between these areas to follow my route/flightplan?

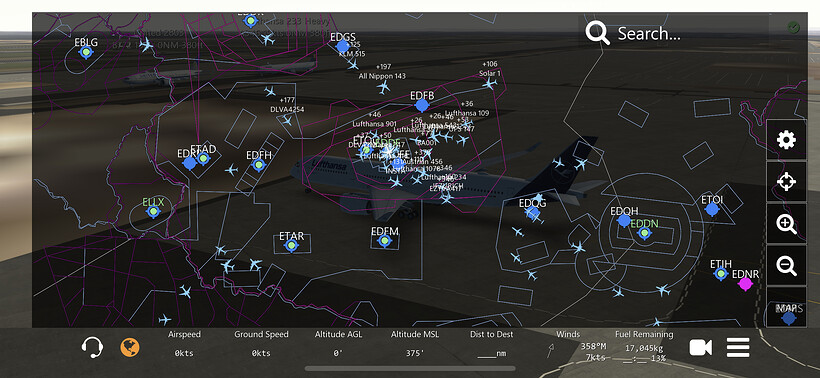

What means purple and blue? What about those lose boxes?

Hari · July 21, 2020, 5:19pm

Hello there well I believe the best place to look for simplest detail would be the user guide it’s so amazingly explained
User guide
Cheers
Hari

lucaviness · July 21, 2020, 5:21pm

Hello Rey! You do not have to avoid these areas. Magenta boundaries are for class Charlie airports. Light blue is for Deltas. Blue boundaries are for class Bravo airports. Charlies and Deltas are smaller fields. Bravos are more like what a commercial airline would fly into, though commercial airlines can fly into any of these. Light green represents terminal control areas and white designates FIR boundaries.

In Infinite Flight, the ring closest to the airport is Tower’s airspace. Additionally, there are vertical boundaries to airspace. Tower is surface to 5000ft AAL, departure/approach is surface to FL180 and extends 50nm horizontally, and Center airspace is surface to FL600 and extends out to their respective white boundaries.

For more information regarding airspace in Infinite Flight, look here:

Hari · July 21, 2020, 5:22pm

Luca beats me 😂 😂😂

Black_Bird · July 21, 2020, 5:26pm

Thx got it. What about the forms and rectangles? Why not simple circles?

lucaviness · July 21, 2020, 5:28pm

The data that Infinite Flight gets us from real life. This are real-word airspace boundaries.

Captain_Oblivious · July 21, 2020, 5:29pm

and to add to that, why are there so many identically colored (class C), irregular rings around EDDF for example

Black_Bird · July 21, 2020, 5:29pm

That’s what I expected. But there is no specific reason regarding the forms? So I can just ignore it I guess…

lucaviness · July 21, 2020, 5:32pm

These extensions protect approaches and departures to and from airports. They also extend Class E airspace to protect aircraft transitioning into or out of airport areas from enroute waypoints such as VORs.

There are also VFR corridors which are pathways through Class B airspace with defined vertical and lateral boundaries, in which aircraft can operate without ATC clearance. So they’re basically a “hole” through Class B airspace.
